Ferrite Cores PQ Series

See Larger Picture : Ferrite Cores PQ Series

Contact Now* Send an Inquiry to this supplier.
  • Share to :
  • Pinterest
You may also be intersted in
ferrite coremnznep

Contact us

TDG Holding Co.,Ltd
[China]

Address
17th Floor, Xinmao Building,No.99 Tianzhou Road, Shanghai Shanghai Shanghai
Phone
86-21-54450186
Contact name
Susie Wang

Quick Information

  • Model Number : PQ26/20

Description

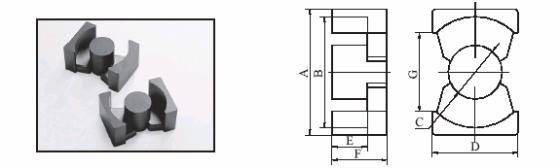

型号 FIG A B C D E F G H I C1 Ae Le Ve TP4 TP4A TP4W Weight 文档
PQ20/7 21.25±0.4 18.0±0.4 8.8±0.2 14.0±0.4 1.32±0.1 3.53/+0/-0.1 12.0min 0.38 54.5 20.7 1132 4270 4220 4800 5.8
PQ20/10 20.5±0.4 18.0±0.4 8.8±0.2 14.0±0.4 2.65±0.1 4.9±0.1 12.0min 0.47 54.7 26.1 1426 4300 3750 4310 7.3
PQ20/11 20.5±0.4 18.0±0.4 8.8±0.2 14.0±0.4 2.65/+0.3/-0 5.4/+0.2/-0 12.0min 0.47 58.9 27.6 1628 4300 3830 4220 9.6
PQ20/12 20.5±0.4 18.0±0.4 8.8±0.2 14.0±0.4 3.05±0.15 6.0±0.1 12.0min 0.50 59.6 29.3 1743 4190 3670 4260 9.0
PQ20/16 20.5±0.4 18.0±0.4 8.8±0.2 14.0±0.4 5.0/+0.3/-0 8.0/+0.2/-0 12.0min 0.60 62.0 37.4 2310 3400 3430 3890 12.9
PQ20/17 20.5±0.4 18.0±0.4 8.8±0.2 14.0±0.4 5.5/+0.2/-0 8.5/+0.2/-0 12.0min 0.61 62.0 37.4 2430 3150 3430 3830 14.4
PQ20/20 20.9±0.8 18.0±0.4 8.8±0.2 14.0±0.4 7.25±0.25 10.1±0.1 12.0min 0.74 61.4 45.4 2790 2740 2830 3360 14.3
PQ20/20A 21.3±0.4 18.0±0.4 8.8±0.2 14.0±0.4 7.15/+0.3/-0 10.1/+0.15/-0.5 12.0min 0.72 62.6 45.5 2850 3150 2900 3450 14.6
PQ26/11 26.5±0.45 22.5±0.45 12.0±0.2 19.0±0.45 2.65/+0.3/-0 5.4/+0.2/-0 15.5min 0.29 110.1 32.4 3567 7200 6560 7640 18.3
PQ26/14 26.95/+0/-0.9 22.05min 12.2/+0/-0.4 19.45/+0/-0.9 2.5±0.1 7.0/+0/-0.2 15.5min 0.30 120.5 32.0 3859 6120 6310 7350 22.3
PQ26/17 26.95/+0/-0.9 22.4min 12.2/+0/-0.4 19.45/+0/-0.9 3.9/+0.2/-0 8.45/+0/-0.2 0.31 121.6 37.5 4560 6210 4700 7540 27.5
PQ26/18 26.5±0.45 22.5±0.45 12.2/+0/-0.4 19.0±0.45 4.3/+0.3/-0 9.0/+0/-0.25 15.5min 0.33 120.6 39.8 4804 5940 6140 7230 26.8
PQ26/20 26.5±0.45 22.5±0.45 12.0±0.2 19.0±0.45 5.75±0.15 9.95/+0.25/-0 15.5min 0.37 120.1 44.7 5372 5510 5650 6690 28.2
PQ26/20A 26.5±0.45 22.5±0.45 12.0±0.3 19.0±0.45 6.2±0.2 10.45±0.2 15.5min 0.39 119.0 46.3 5546 5250 5410 6420 28.5
PQ26/20B 26.5±0.45 22.5±0.45 12.0±0.2 19.0±0.45 5.75/+0.3/-0 10.2/+0.1/-0.25 15.5min 0.37 121.0 45.0 5445 5510 5660 6700 28.0
PQ26/22 26.5±0.45 22.5±0.3 12.0±0.2 19.0±0.3 7.2±0.2 11.45±0.2 0.42 119.6 50.3 6026 4800 5120 6100 31.0
PQ26/25 26.5±0.45 22.5±0.45 12.0±0.2 19.0±0.45 8.1±0.2 12.5/+0.25/-0 15.5min 0.44 121.4 54.3 6605 4670 4980 5950 33.9
PQ32/16 32.0±0.5 27.5±0.5 13.45±0.25 22.0±0.5 3.4/+0.3/-0 8.05/+0/-0.18 19.0min 0.27 163.3 44.1 7205 7460 8650 9130 37.0
PQ32/18 32.5/+0/-1.0 27.0/+1.0/-0 13.7/+0/-0.5 22.5/+0/-1.0 4.5/+0.3/-0 9.0/+0/-0.25 19.0min 0.30 159.9 48.3 7735 6860 7100 9450 41.7
PQ32/19 32.5/+0/-1.0 27.0/+1.0/-0 13.4±0.3 22.5/+0/-1.0 5.05/+0.3/-0 9.55/+0.3/-0 19.0min 0.31 162.6 50.9 8276 6700 6500 8300 40.8
